Main details

Design/Diagram series:	BR Pre-TOPS Carriage Diagram		Previous	Next
Design/Diagram ID:	116	In selection ?This works on your last-used designs selection, including any filters and sort orders. Buttons will not show if the current design was not in your last selection, or if you are at the beginning or end of the data set.
Description:	Mk.1 Corridor First (FK)	Overall ?This works on the overall designs list without any filtering or sorting applied.
TOPS code:
On Date:
Status:	Defunct
Off Date:
Key Photo:
Icon:
Source of information:	Departmental Coaching Stock 4th Edition, Platform 5, 1990

Batches
There are 14 batches recorded as being wholly to this design code/diagram.

Numbers	Class	Design	Type	Qty	Origin	Built/Converted	Date/s	Lot
13000-13032	AA11	116	Mk.1 Corridor First (FK)	33	New	BR, Swindon	1951	30019
13033-13035	AA11	116	Mk.1 Corridor First (FK)	3	New	BR, Eastleigh	1951	30052
13036-13059	AA11	116	Mk.1 Corridor First (FK)	24	New	BR, Swindon	1952	30019
13060-13064	AA11	116	Mk.1 Corridor First (FK)	5	New	BR, Swindon	1953	30027
13065-13076	AA11	116	Mk.1 Corridor First (FK)	12	New	BR, Swindon	1953	30066
13077-13084	AA11	116	Mk.1 Corridor First (FK)	8	New	BR, Swindon	1953	30083
13085-13107	AA11	116	Mk.1 Corridor First (FK)	23	New	BR, Swindon	1954	30089
13108-13125	AA11	116	Mk.1 Corridor First (FK)	18	New	BR, Swindon	1954	30107
13126-13184	AA11	116	Mk.1 Corridor First (FK)	59	New	BR, Swindon	1955	30147
13185-13219	AA11	116	Mk.1 Corridor First (FK)	35	New	BR, Ashford/Eastleigh	1957-1959	30217
13223-13238	AA11	116	Mk.1 Corridor First (FK)	16	New	BR, Ashford/Eastleigh	1959	30381
13239-13251	AA11	116	Mk.1 Corridor First (FK)	13	New	BR, Ashford/Eastleigh	1959	30432
13253-13302	AA11	116	Mk.1 Corridor First (FK)	50	New	Metro-Cammell	1960	30578
13303-13360	AA11	116	Mk.1 Corridor First (FK)	58	New	BR, Swindon	1962	30667

Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this design/diagram are listed below.

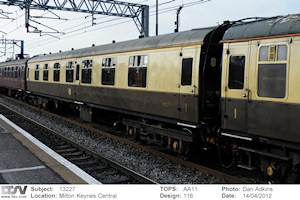

Photos - Internal
There is 1 photo of this design on this website.

Photos - External
No external photos of this item yet.

Listings
There are no listings to this design.

Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.

Related information

Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are 7 dimensions recorded for this design.

What	How much	Source
Bogie centres	46ft 6in	BR diagram book on BMRG website
Length over headstocks	63ft 5in	BR diagram book on BMRG website
Length over buffers (extended)	67ft 1in	BR diagram book on BMRG website
Bogie wheelbase	8ft 6in	BR diagram book on BMRG website
Height overall	12ft 9.5in	BR diagram book on BMRG website
Width overall	9ft 3in	BR diagram book on BMRG website
Seats	42	BR diagram book on BMRG website

Drawings
There are 4 drawings referenced for this design.

Views ? Which views does the drawing include? S = side elevation E = end elevation P = plan view D = detail (scrap views, sections etc)	Quality ? How much detail is in the drawing? High - all/most detail included Medium - some detail omitted Low - basic diagram	Comment	Origins	Source
SEP	High		BR diagram book	Page 37 of Coaching_Stock_N1_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SEP	High		BR diagram book	Page 38 of Coaching_Stock_N1_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SEP	High		BR diagram book	Page 46 of Coaching_Stock_N2_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SEP	High		BR diagram book	Page 65 of Coaching_Stock_N3_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
