Main details

Design/Diagram series:	BR Pre-TOPS Carriage Diagram		Previous	Next
Design/Diagram ID:	313	In selection ?This works on your last-used designs selection, including any filters and sort orders. Buttons will not show if the current design was not in your last selection, or if you are at the beginning or end of the data set.
Description:	Mk.1 Suburban Composite Lavatory (CL)	Overall ?This works on the overall designs list without any filtering or sorting applied.
TOPS code:
On Date:
Status:	Defunct
Off Date:
Key Photo:
Icon:
Source of information:	Departmental Coaching Stock 4th Edition, Platform 5, 1990

Batches
There is one batch recorded as being wholly to this design code/diagram.

Numbers	Class	Design	Type	Qty	Origin	Built/Converted	Date/s	Lot
43000-43049		313	Mk.1 Suburban Composite Lavatory (CL)	50	New	BR, Doncaster	1955	30094

Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this design/diagram are listed below.

Photos - Internal

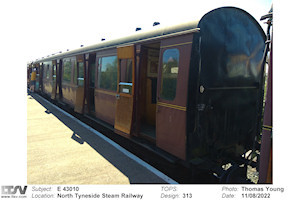

There are 2 photos of this design on this website.

Photos - External
No external photos of this item yet.

Listings
There are no listings to this design.

Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.

Related information

Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are 7 dimensions recorded for this design.

What	How much	Source
Bogie centres	40ft 0in	BR diagram book on BMRG website
Length over headstocks	56ft 11in	BR diagram book on BMRG website
Length over buffers	60ft 7in	BR diagram book on BMRG website
Bogie wheelbase	8ft 6in	BR diagram book on BMRG website
Height overall	12ft 7in	BR diagram book on BMRG website
Width overall	9ft 3in	BR diagram book on BMRG website
Seats	61	BR diagram book on BMRG website

Drawings
There are 3 drawings referenced for this design.

Views ? Which views does the drawing include? S = side elevation E = end elevation P = plan view D = detail (scrap views, sections etc)	Quality ? How much detail is in the drawing? High - all/most detail included Medium - some detail omitted Low - basic diagram	Comment	Origins	Source
SEP	Medium		BR diagram book	Page 75 of Coaching_Stock_N1_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SEP	Medium		BR diagram book	Page 76 of Coaching_Stock_N2_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SEP	Medium		BR diagram book	Page 106 of Coaching_Stock_N3_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html

Data History

Item added:	12:00 on 01/01/2020 by Thomas Young
Approval status:	Approved, auto/admin
Item approved:	01/01/2020 by Thomas Young

Record edited 1 time.

Time / Date	Edited by	Change
23:06 on Sat 03/09/2022	Thomas Young	Key photo added
