Main Details PDF

TOPS Code/Class:	BBA		Previous	Next
TOPS Category: ?This is my own (unofficial) means to categorise TOPS codes based on what they relate to and whether they are long (4 characters, i.e. including sub-codes) or short (3 characters)	SW - Short Code, Wagons	In selection ?This works on your last-used TOPS selection, including any filters and sort orders. Buttons will not show if the current TOPS code was not in your last selection, or if you are at the beginning or end of the data set.
TOPS GENKOC: ?The first character of a TOPS code is known as the GENKOC and indicates the general type of rolling stock (e.g. 1xx are DMUs).	B - Bogie Steel-Carrying Wagons (excluding coil carriers until 1983)	Overall ?This works on the overall TOPS code list without any filtering or sorting applied.
TOPS BRAKTY: ?The third character of many TOPS codes is the BRAKTY, indicating the type of braking equipment fitted (e.g. A indicates air brakes).	A - Air brakes
Description:	Bogie Steel 50ft
Numbers: ?Numbers are only shown where the ranges were limited. Otherwise, refer to the listings section below. The letter r after the numbers indicates this is a range, with not all numbers in the sequence used.	910000-910591r
Status:	Current
Date On:	?/?/1973
Origins:
Date Off:
Destiny:
Key Photo:
Icon:

Sub-codes ?If this code had any sub-codes, they will be listed here.

BBA-A	Bogie Steel 50ft
BBA-B	Bogie Steel 50ft
BBA-C	Bogie Steel 50ft
BBA-F	Bogie Steel, 50ft
BBA-G	Bogie Steel, 50ft without end stanchions
BBA-H	Bogie steel AB 50', floor bearers box section
BBA-S	Bogie Steel AB 50ft (6 inch FLR bearers)
BBA-T	Bogie Steel, 50ft
BBA-U	Bogie Steel 50ft

Designs/Diagrams ?Design codes and diagrams related to this code (and any sub-codes where relevant) are listed here.
27 designs/diagrams currently listed against this TOPS code/class (including any sub-codes).

Design	Class	Series	Description	Status
BB001A	BBA-F	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001B	BBA-F	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001C	BBA-F	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001D	BBA-G	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001E	BBA-G	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB001F	BBA-F	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001K	BBA-S	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001L	BBA-S	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001M	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB, Swing Motion bogies	Current
BB001N	BBA-H	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001P	BBA-H	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001S	BBA	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001T	BBA-A	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001U	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001V	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB001X	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB002A	BBA-B	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB002B	BBA-B	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB002C	BBA-C	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002D	BBA-C	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002E	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002F	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002G	BBA-C	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002H	BBA-C	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	TBC
BB002J	BBA-U	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB002K	BBA-U	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB	Current
BB002N	BBA-T	BR TOPS Wagon Design Code	Bogie Steel Carrier - Bogie Steel AB, Swing Motion bogies	Current

Batches ?Batches of numbers built or converted to this TOPS code are listed below. Note that only codes that were wholly to this code will appear, otherwise refer to the listings section for other numbers.
There are 5 batches recorded as being wholly to this TOPS code (including any sub-codes).

Numbers	Class	Design	Type	Qty	Origin	Built/Converted	Date/s	Lot
910000	BBA-F	BB001A	100t Steel-Carrying Wagon	1	New	BR, Shildon	1973	3845
910001-910120	BBA-F	BB001C	100t Steel-Carrying Wagon	120	New	BR, Ashford	1975	3857
910161-910365	BBA-F	BB001B	100t Steel-Carrying Wagon	205	New	BR, Ashford	1976	3872
910367-910491	BBA-F	BB001B	100t Steel-Carrying Wagon	125	New	BR, Ashford	1976	3871
910492-910591	BBA-F	BB001B	100t Steel-Carrying Wagon	100	New	BR, Ashford	1980	3959

Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this TOPS class/code are listed below. If no profiles are shown, try looking under the parent code (in main details section above)
BBA Bogie Steel Wagons

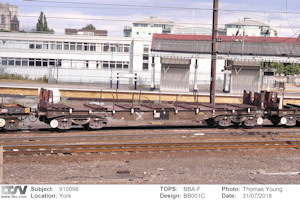

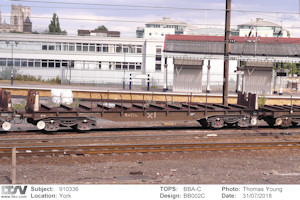

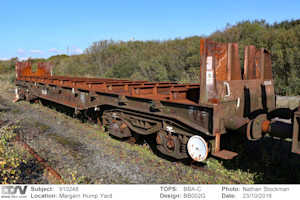

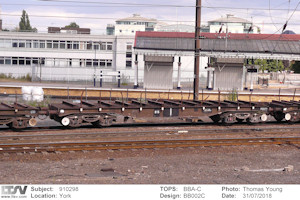

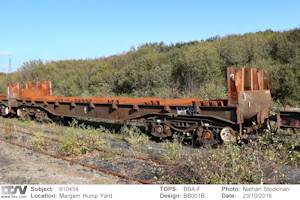

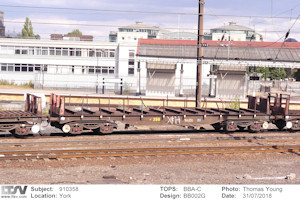

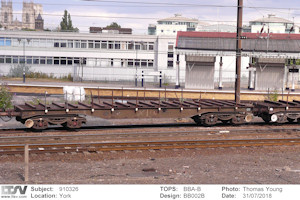

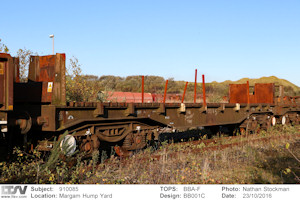

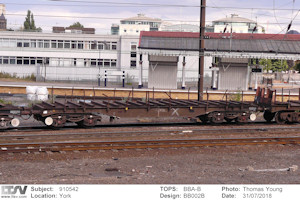

Photos - Internal
There are 25 photos of this type (including any sub-codes). The 10 most recently added are shown below.

Photos - External
No external photos of this item yet.

Listings
There are 2485 listings (with 523 distinct numbers) for this TOPS code/class (including any sub-codes).

Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.

Related Information
To be added

Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are no dimensions recorded for this TOPS code.

Drawings ?Drawings are normally referenced to specific design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available. If no drawings are listed here, try looking at related designs/diagrams (above).
There are no drawings referenced for this TOPS code.

Data History
Record added 01/01/2020 by Thomas Young

---

This item has not been edited.
